Chunmu central ac Condenser/Heat Exchanger Tube cleaning machine makes pipe cleaning easier, and can be operated by a single person. They are ideal for cleaning tubes/pipes 6.4mm-25.4mm (1/4''-1'') I.D.In chillers, condensers, evaporators, absorption machines and heat exchangers etc.

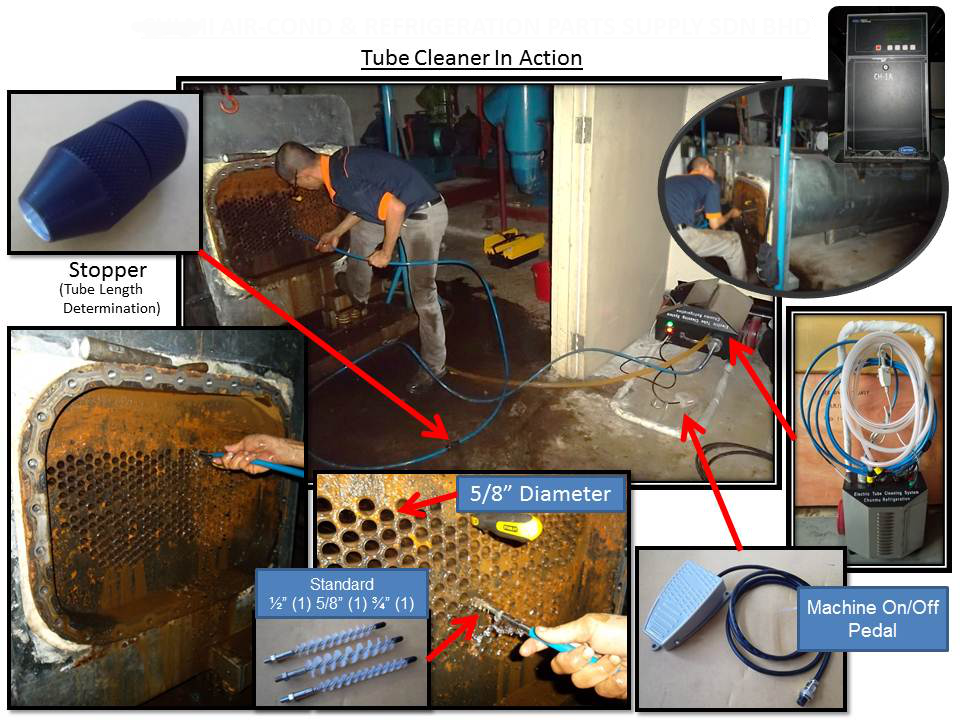

The CM-V uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned. As the shaft rotates inside its watertight nylon casing,the unit feeds water through the casing to the cleaning tool. A foot switch controls shaft rotation and water flow.While the operator feeds the rotating shaft assembly through the tube, the water flow flushes out deposits as they are loosened.
Optional Accessories: Nylon Brushes
6.4mm, 7.9mm, 9.5mm, 11mm, 12.7mm, 14.3mm, 15.9mm, 17.5mm, 19.1mm, 20.6mm, 22.2mm, 23.8mm, 25.4mm
When selecting a brush, ensure its outer diameter is equal to or up to 1.6mm smaller than the inner diameter of the tube.
Main Features
1. Professional & Safe: Protects piping integrity.
2. Easy to Use: No specialized training required.
3. Durable Build: Stainless steel, corrosion-resistant.
4. Tool-Free Maintenance: Quick-release flexible shaft
