CM580S series refrigerant recovery machine is specially designed for waste air condition and refrigerator disassembly line with high efficiency recovery rate, it utilizes three -stage oil less compressor, the machine can also remove the oil and impurity from your dirty refrigerant during recovery process.
Application

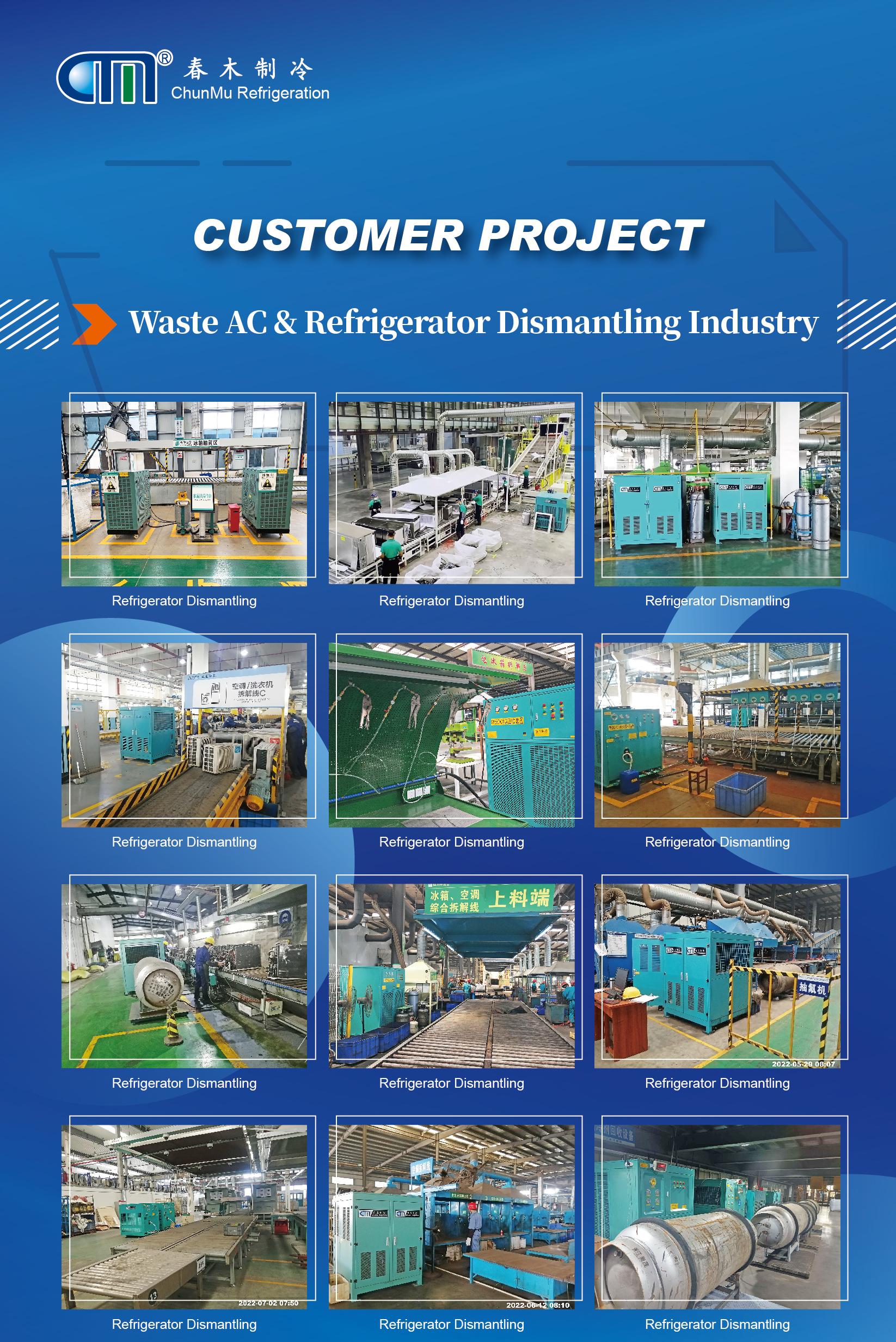

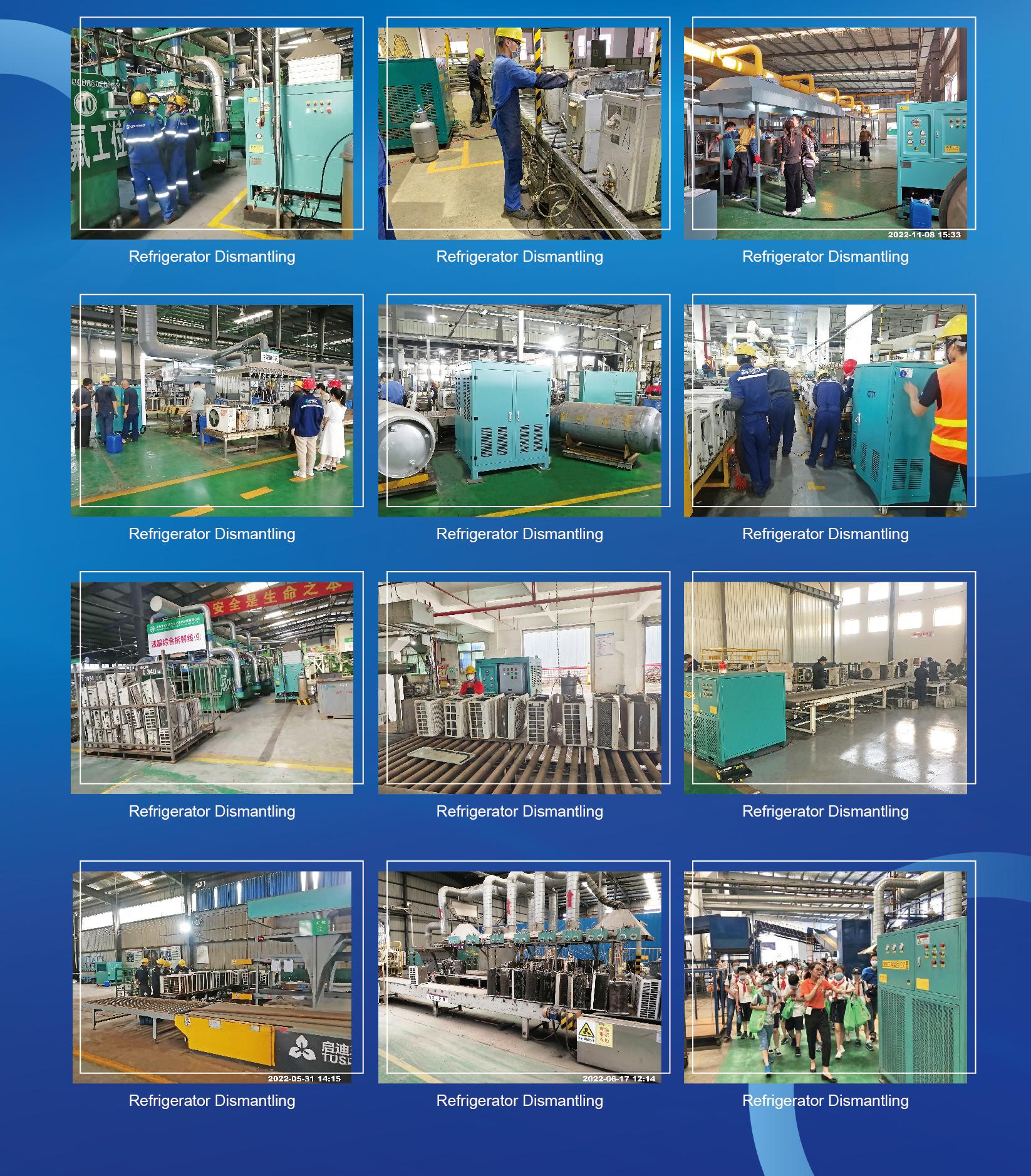

Waste Recycling Factory
Feature
· Suitable for refrigerators, window air conditioners, and split air conditioners.
· 3-stage compression technology delivers a high displacement of 57 m³/h for fast, stable refrigerant recovery.
· Equipped with industrial-grade oil and water separator removes oil and impurities from recovered refrigerant.
· Equipped with pressure detection device which more easier to check whether the A/C has refrigerant or not.
· Digital workstation display provides dual monitoring of refrigerant status during recovery.
· Suction pressure low down to -0.095Mpa make sure no residual refrigerant left.
· Cylinder pressure monitoring and pressure relief ensure safe cylinder venting and maximum filling capacity.
· Ultra-deep vacuum helps achieve high recovery efficiency and meet stringent environmental requirements.
· Standard 12-port simultaneous recovery, expandable to 16–40 ports for high-volume operation.
CM580S Machine Operating Process & Safety Features

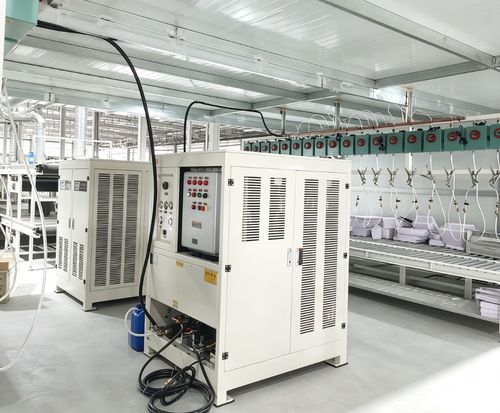

1. The CM580S machine is recover refrigerant from multiple refrigerators or air conditioners simultaneously. It supports 12 stations as standard and can be expanded to 15–30 stations. Each piercing tool is equipped with a pressure sensor to quickly detect whether refrigerant is present, improving dismantling efficiency and reducing operator error.
2. An integrated industrial-grade oil separator ensures efficient oil and refrigerant separation throughout the recovery process.
3. The system monitors pressure in real time to control the amount of air entering the system, ensuring efficient and reliable refrigerant recovery.
4. ChunMu provides continuous technical support, operator training, and dedicated after-sales service to help customers optimize system performance and user experience.
5. The CM580S is an energy-efficient and environmentally friendly refrigerant recovery system. It prevents environmental pollution, controls air intake to maintain stable cylinder pressure, ensures continuous production, and provides a safe working environment with no adverse health effects on operators.
