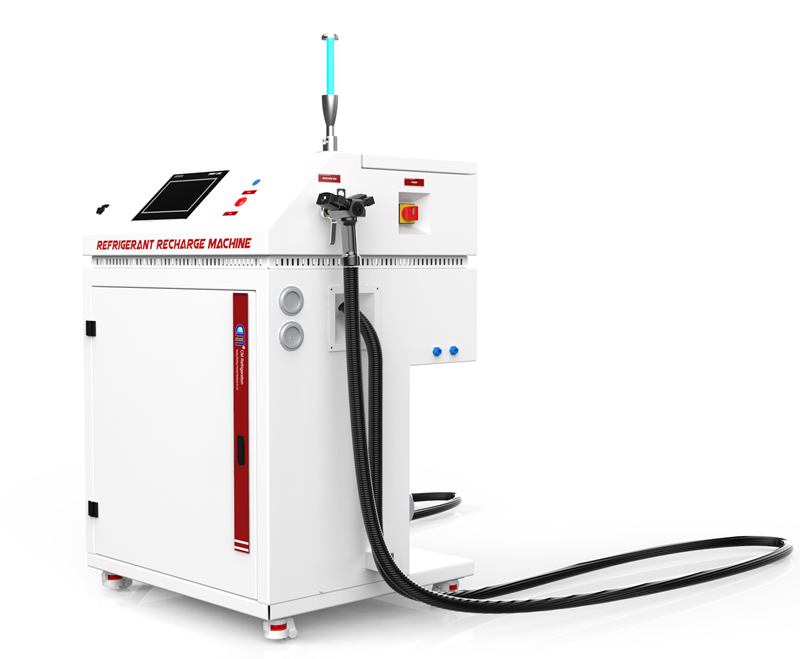

CM8600(ExS) Refrigerant Charging Machine

Description

CM8600(ExS)series refrigerant charging machine was specially designed for work with flammable refrigerant,like R600a、R290、R32、R1234ze、R1234yf ...etc and to be used in any kind of assembly lines of cooling system (refrigerators, water cooler, heat pump, air conditioners etc...) to perform evacuation, leakage test and refrigerant charging. This system utilizes explosion proof design, isolated electrical control system with explosion proof vacuum pump for safety operation process.

CM8600(Exs) Machine Advantages

1. Siemens smart PLC technology for fast and accurate operation process;

2. Automatic reminder function when the liquid supply tank is lack of refrigerant;

3. Pneumatic pressurization to prevent refrigerant pollution, ensure stable pressure supply and reliable safety;

4. Using a high-precision flow sensor as a measuring device to ensure the accuracy of refrigerant perfusion;

5. Equipped with leakage alarm device

6. Powerful pneumatic booster pump for high speed charging rate

7.Combine vacuum, leakage inspection, refrigerant charging to all in one system

8. The humanized design of the filling gun, the structure is small and exquisite, light weight, easy for workers to operate, low failure rate and convenient maintenance;

Please contact us by email ---->

Main Features

Smart linear algorithm ensure high charging accuracy

No need to calibrate charging accuracy daily

-10℃-50℃ temperature testing lab to ensure stability

Precise air pressure detection and ventilation system

Explosion-proof vacuum pump

Leak alarm as standard

CE, ATEX, ZJEX Certification

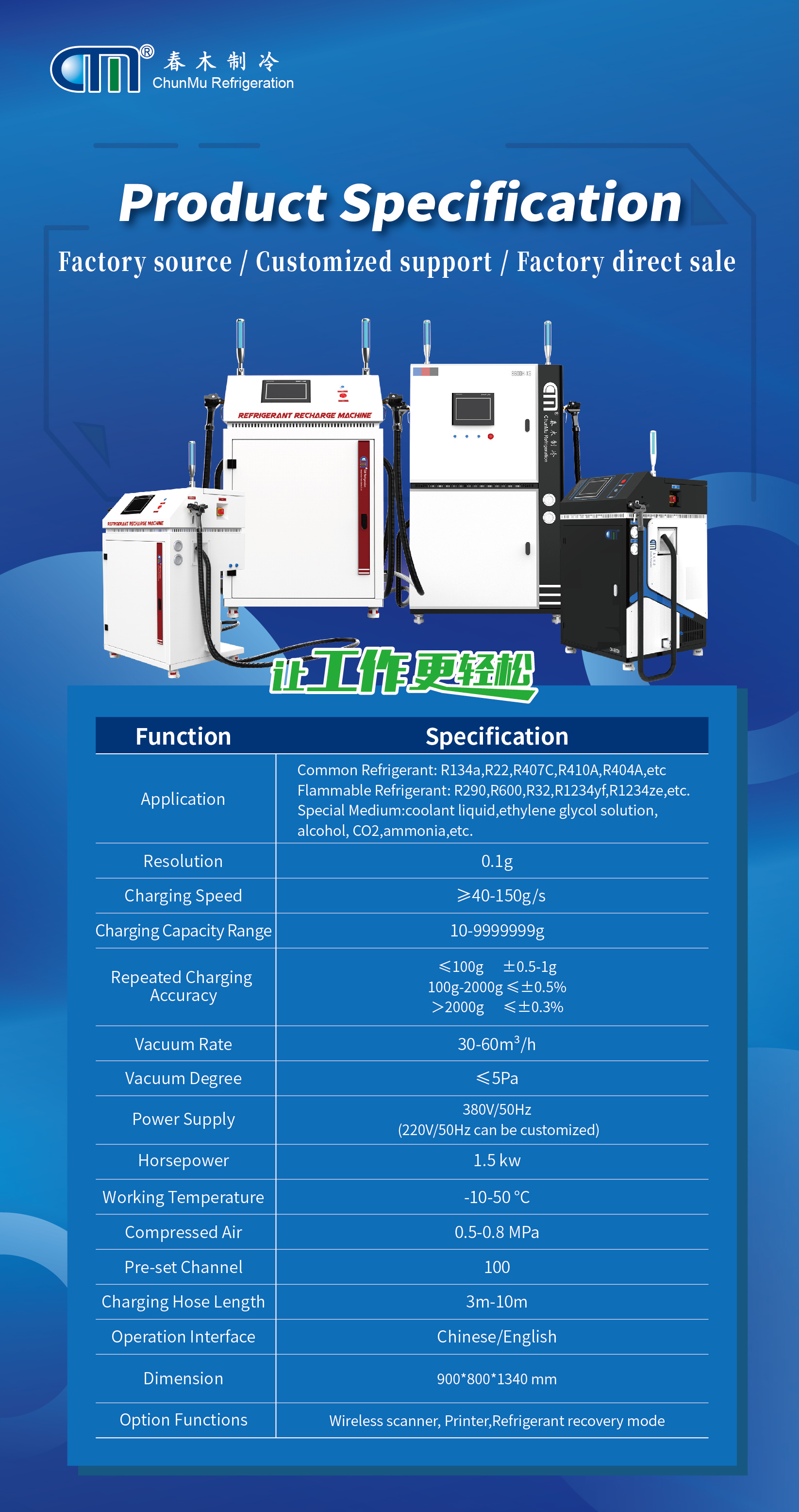

Specification

CM8600(ExS) Refrigerant Charging Machine For Flammable Refrigerant
Model	CM8600（ExS）
Serial No.	ExS40	ExS60
Charging Speed	≥40 g/s （2.4 kg/min）	≥60-80 g/s （3.6-4.8 kg/min）
Single Charging Capacity	10-999999g
Charging Accuracy	＜Less than 500g, ≤1g 500 g-2000g, ≤±0.5% ＞2000g, ≤±0.3%
Measurement Methods	RRT turbine flowmeter （EMERSON mass flowmeter is optional）
Resolution Ratio	0.1g
Certification	CE、ATEX、ZJEX
Vacuum Rate	4L/S	8L/S
Vacuum Degree of Machine	3-5pa
Injector Connection	Hansen 1/4 or 3/8 quick connectors
Charging Hose Length	3m - 20m
Communication Interface	RS485/RS232/Ethernet
Pre-set Channel	100
Compressed air Pressure	0.5-0.7Mpa
PLC	Siemens
Power Supply	380V 50Hz 3Phase or 220V 50Hz 1Phase
Dimension	9008001340 mm
Approved Refrigerants	R600a、R290、R32、R1234ze、R1234yf、R134A etc.
Option Function	Refrigerant recovery unit, Bar code scanner, Printer, Data acquisition, IPC

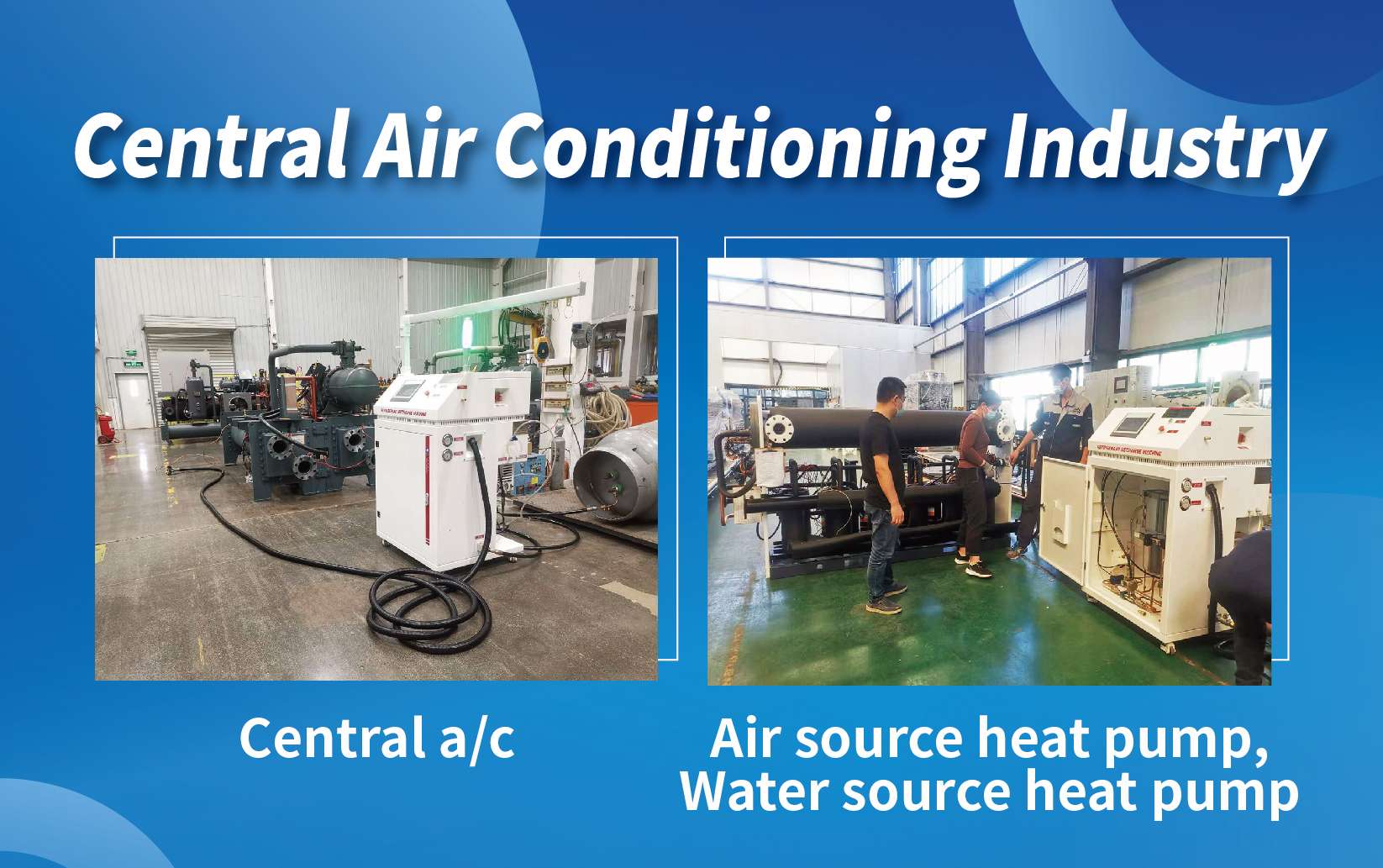

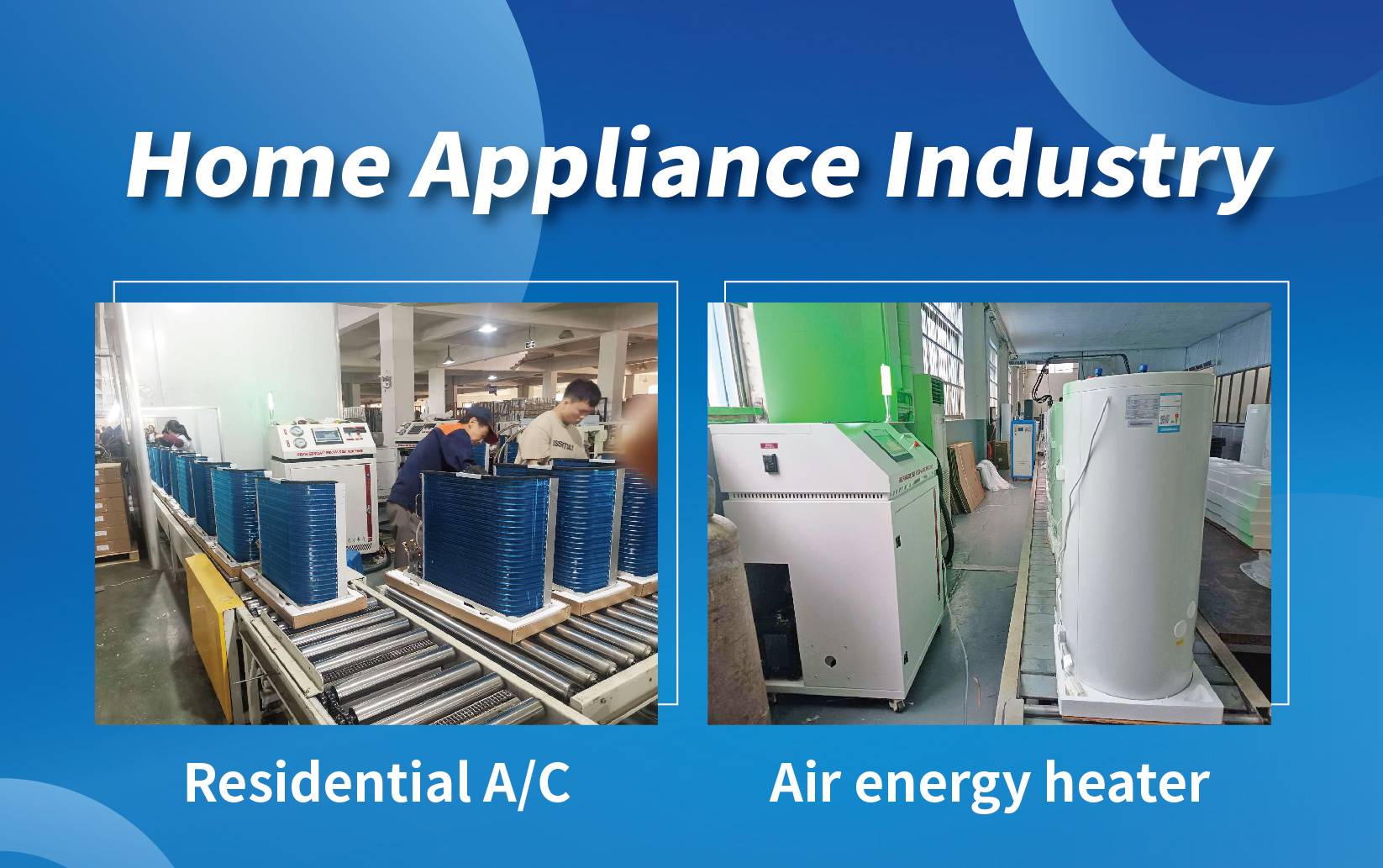

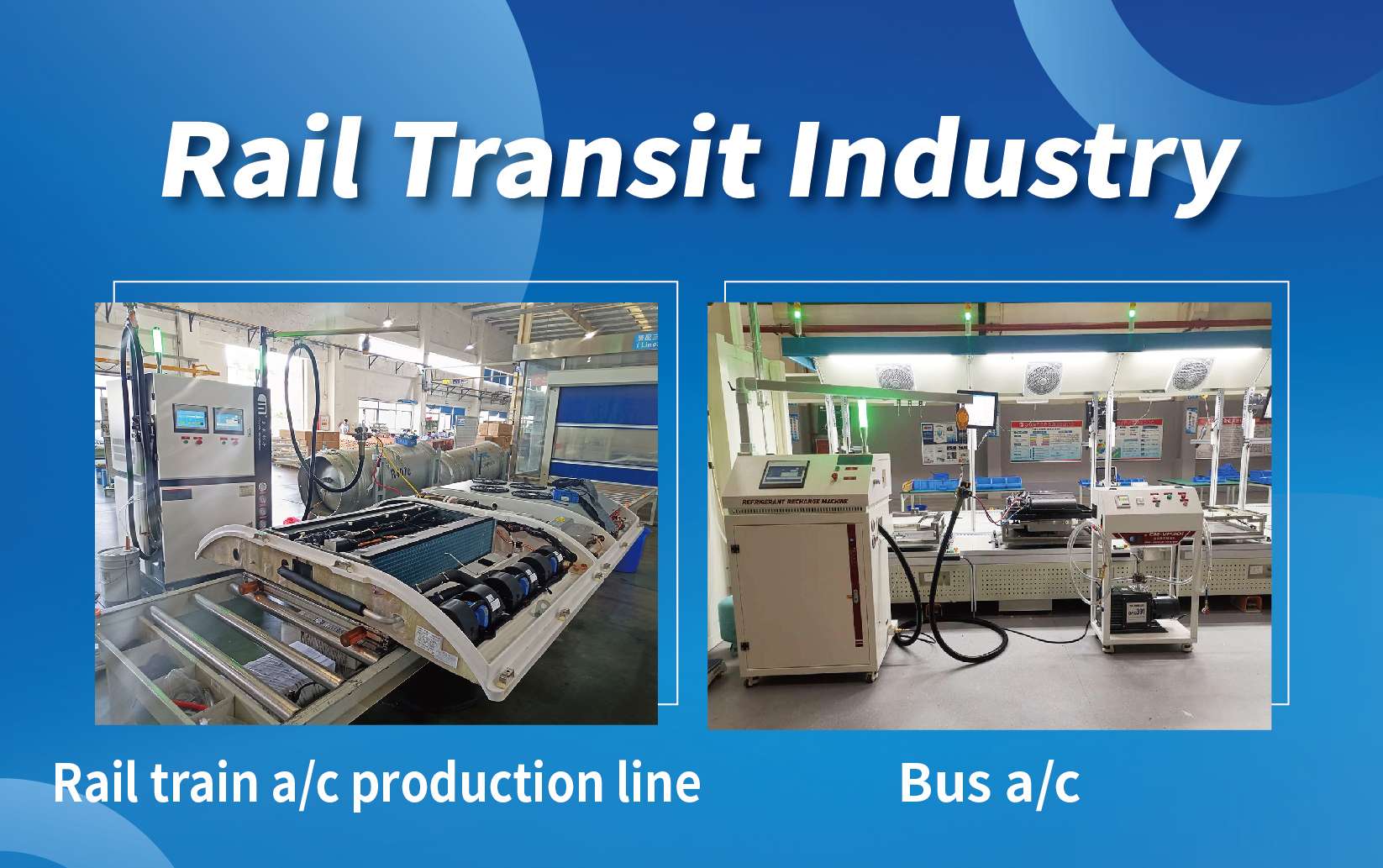

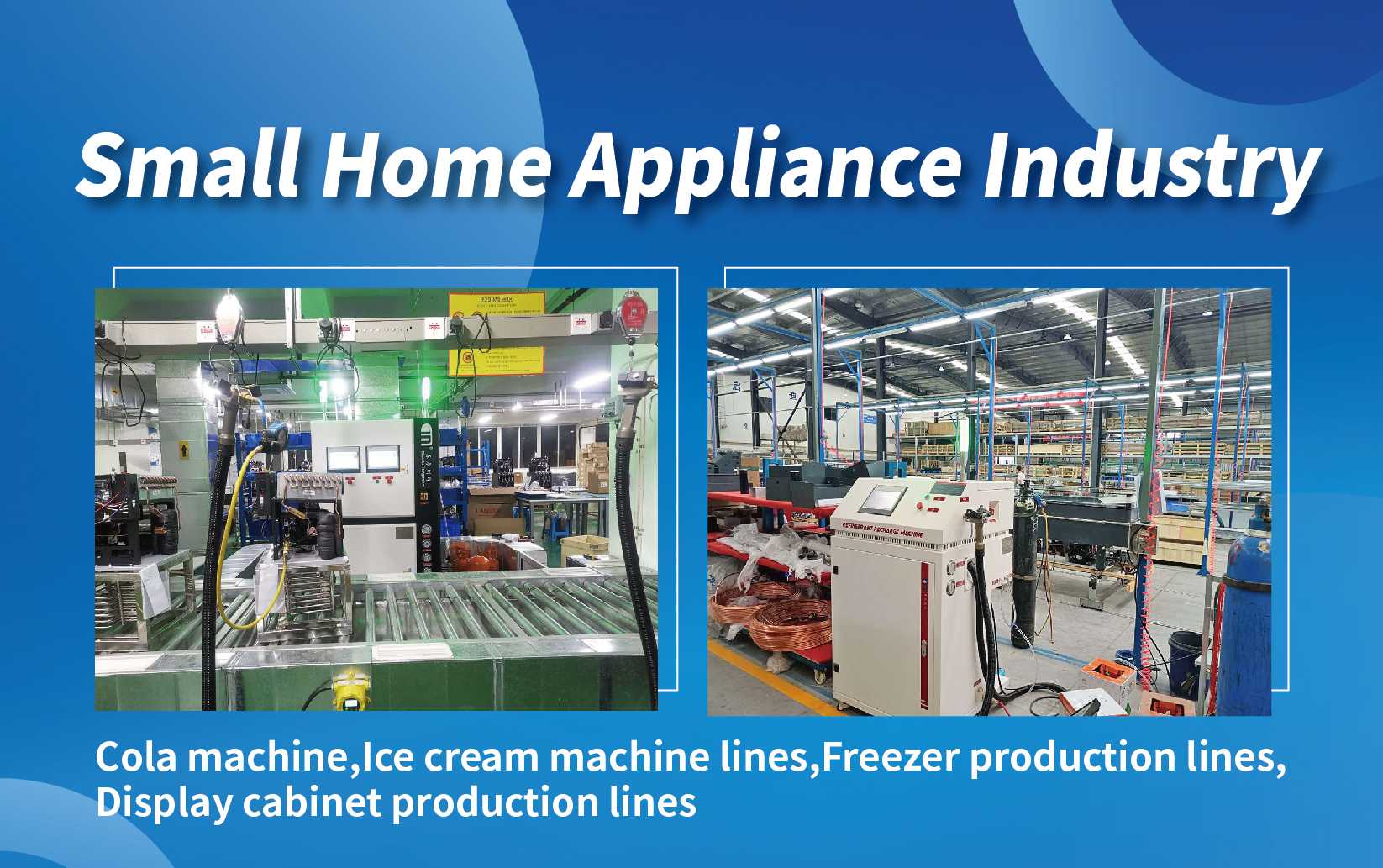

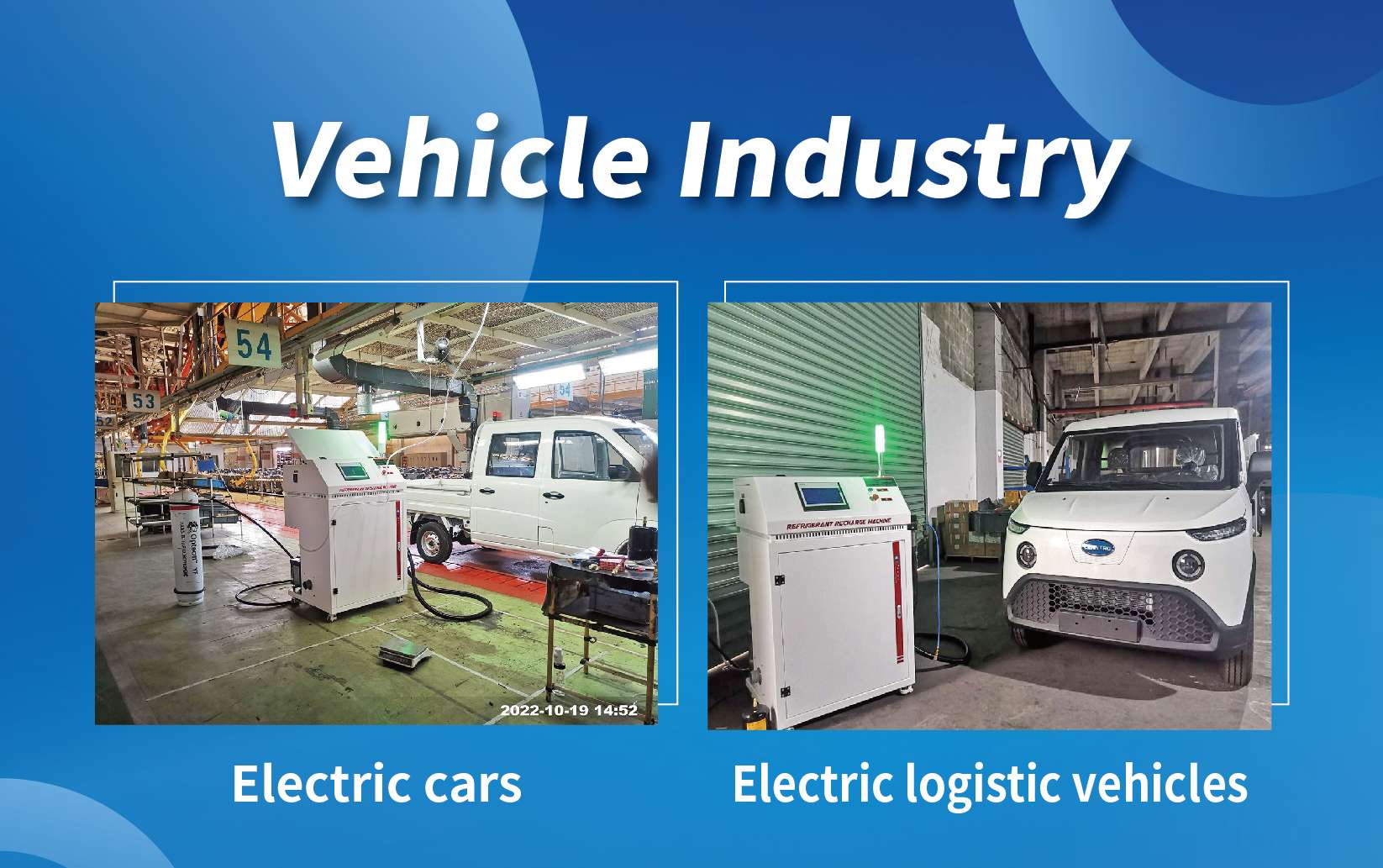

Application	Air Condition, Water Cooler, Beer Machine, Freezers, refrigerators, chillers, heat pumps, etc.

Related Service

1) Professional After-sales Service Team

The after-sales service team consists of after-sales personnel, technicians and technical engineers to ensure that the timely service rate reaches 100%.

2) Professional service engineers with online support

Online technical service via video to guide you on how to operate and repair your equipment.

3) Factory Tour Service

Supports on-site factory inspection service or show you our factory condition through real-time video.

4) Fast Delivery: Enough Stocks For lmmediate Delivery

we have enough stocks for standard models to meet urgent needs.

5)Non-Fumigation Packaging Box

Non-fumigation packaging box with buckle type lock for safety shipping.

Company Introduction

·Nanjing ChunMu(CM) Refrigeration , founded in 1998, the factory covers an area of 10,184.17㎡, is a smart modeling enterprise specializing in refrigerant recovery, purification, charging equipment research and development, manufacturing as an integrated whole, and set up a research and development service center in the USA in 2019, and the existing domestic and foreign staff of nearly 100 people.

·21 years export experience, exprot to more than 64 countries. York, Carrier, Trane and other Fortune 500 companies long-term partners.

·CM products have strict quality control, products through the European Union CE certification, ATEX explosion-proof certification, ISO9001 certification.

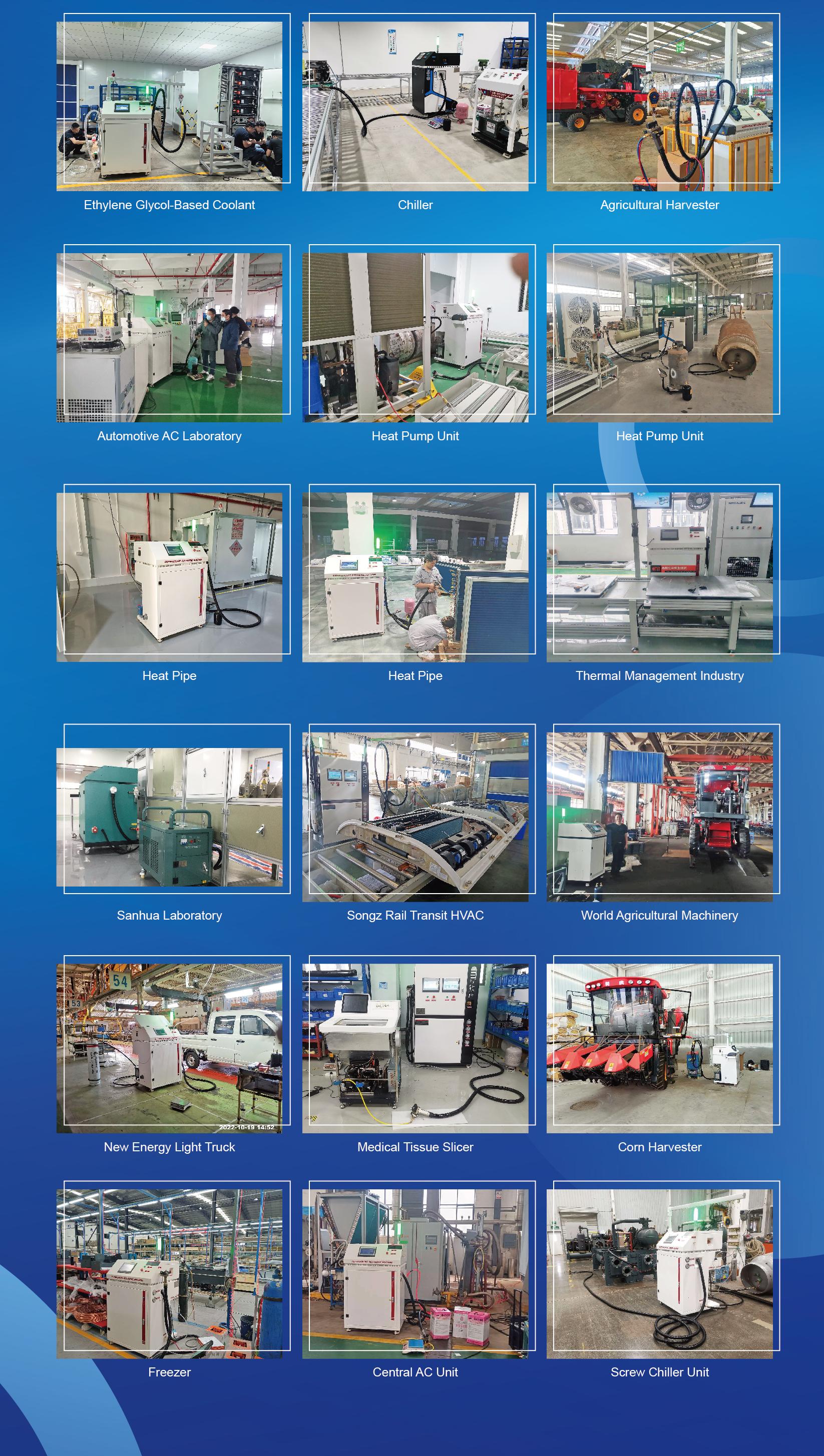

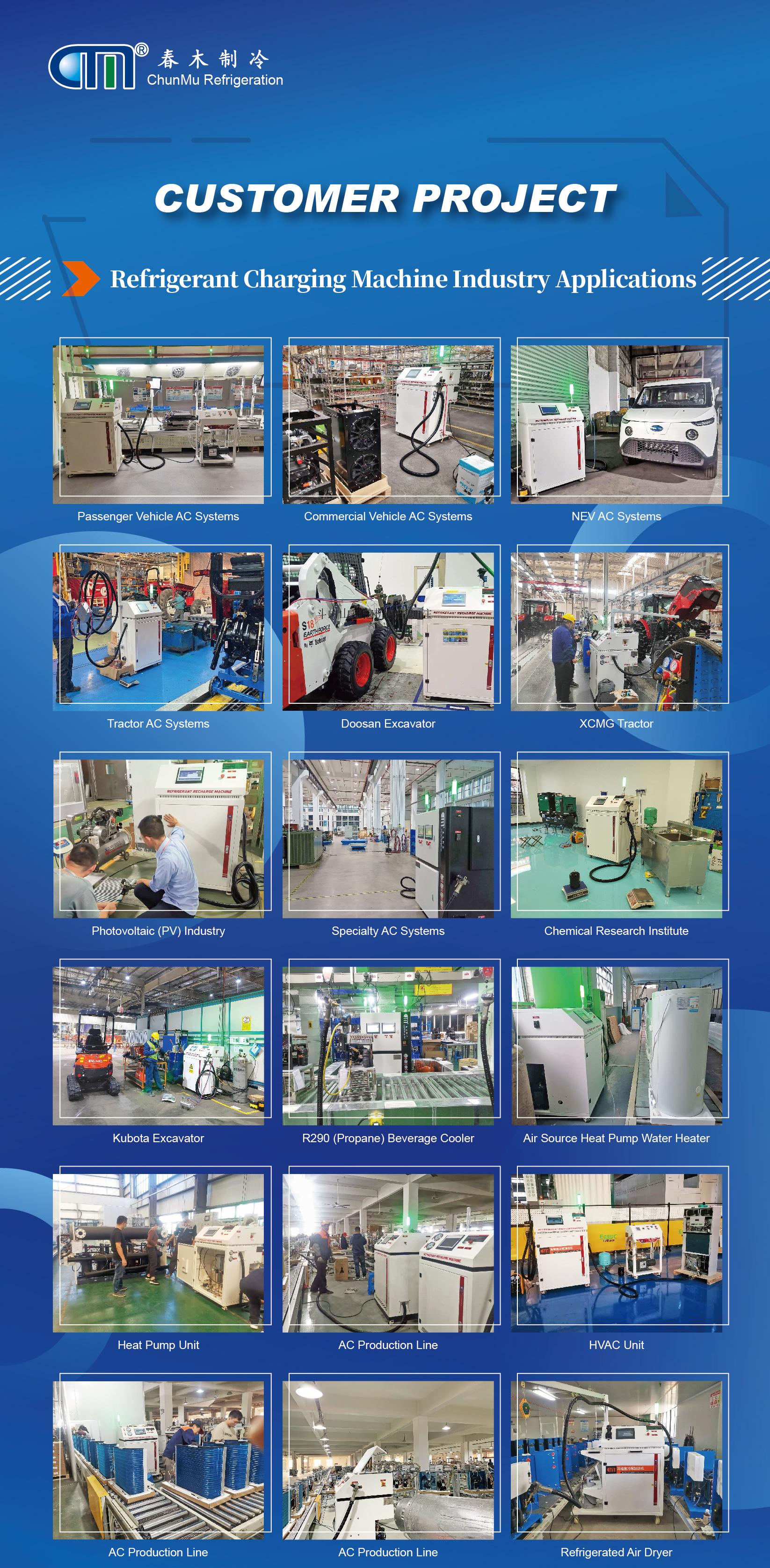

Customer Project

(Click the text link below to know more the content details)

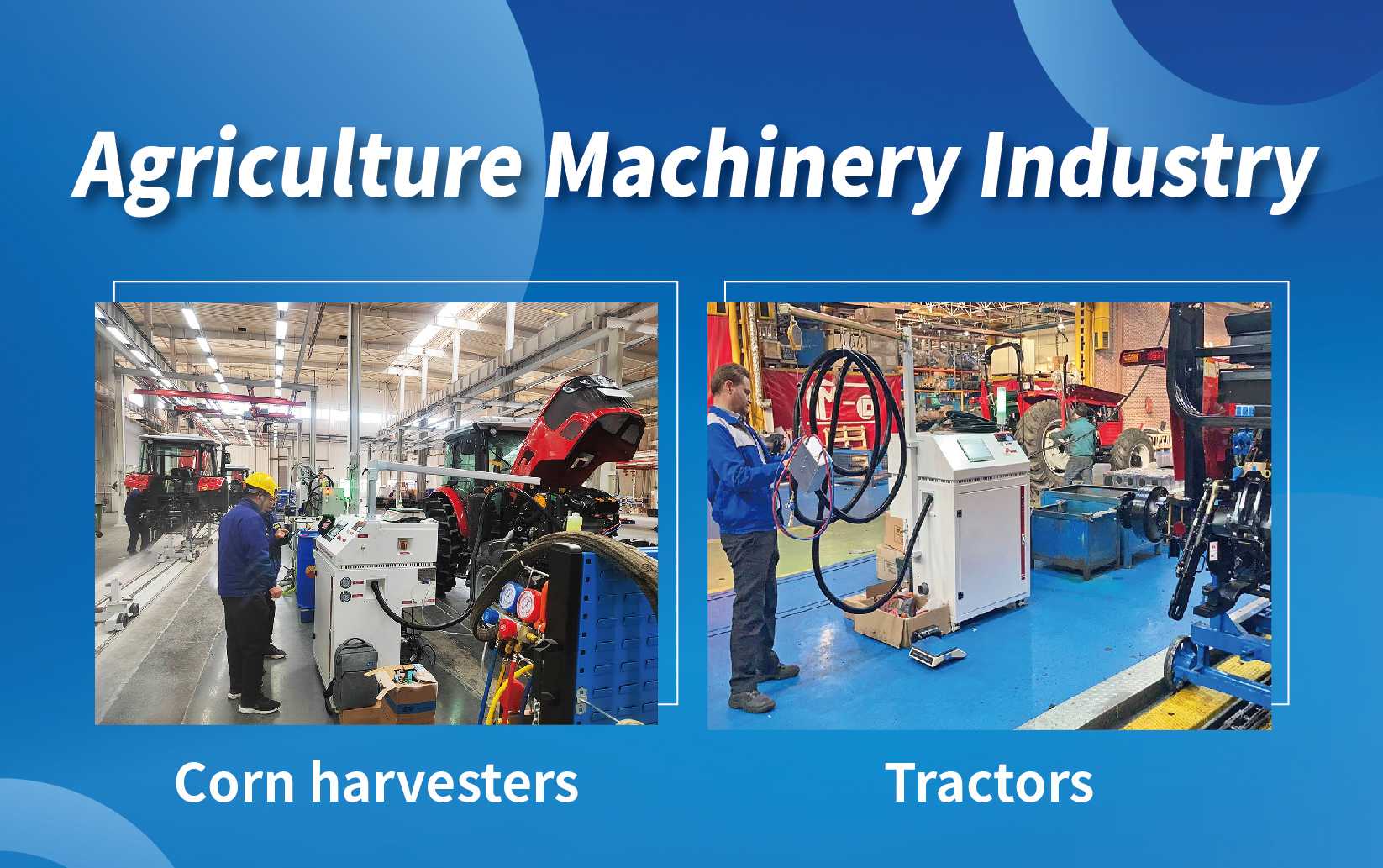

1. CM8600 Automatic Refrigerant Charging Machine Uses in Agriculture Machinery

2. Full Automatic Refrigerant Charging Machine CM8600 is used in Air Source Heat Pump of Gas Boiler Industry

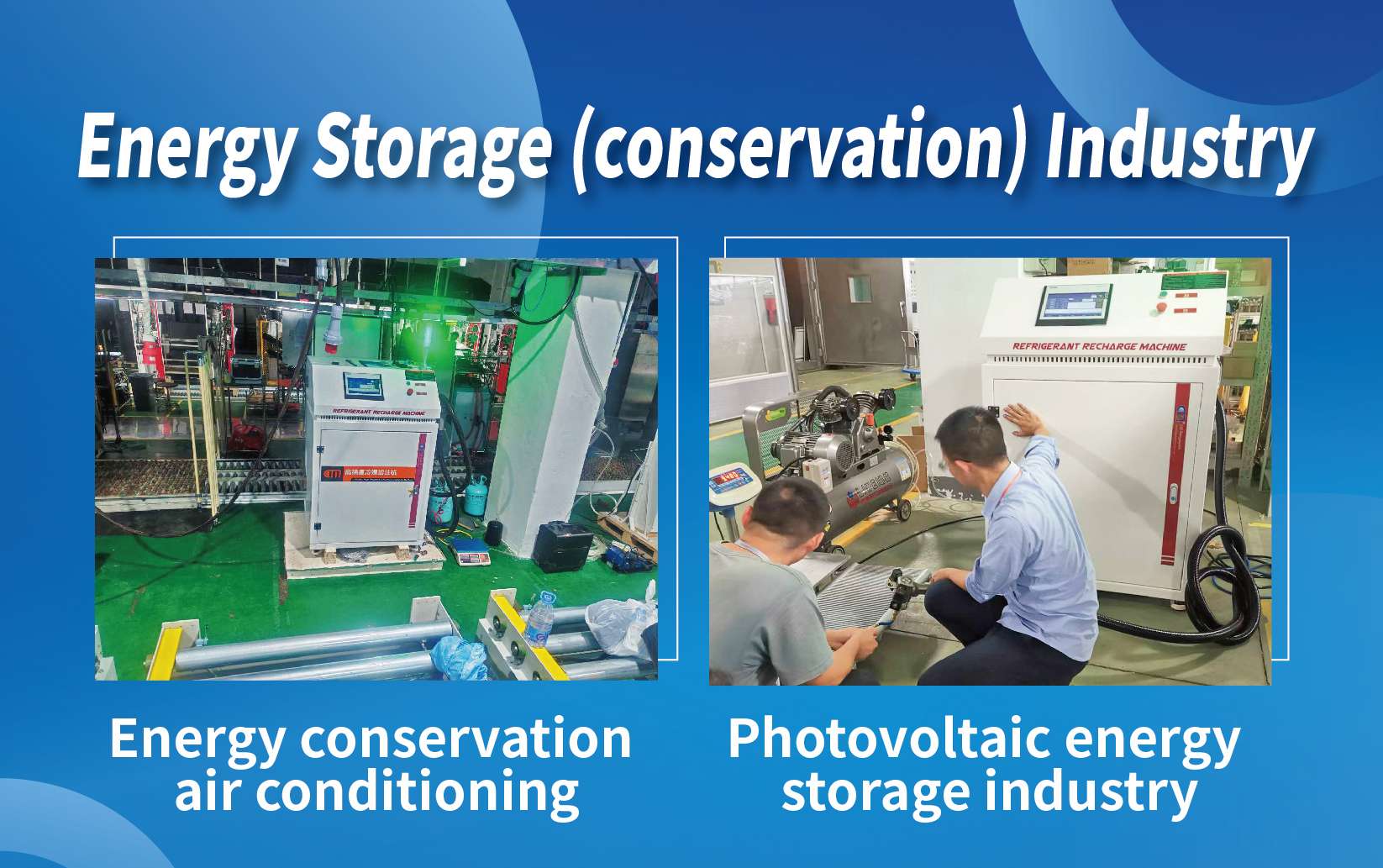

3.CM8600 Automatic Refrigerant Charging Machine Applies in Energy Conversation Thermal Management Air Conditioning

4. CM8600 Refrigerant Charging Machine for Electrical Auto Car Air Conditioners

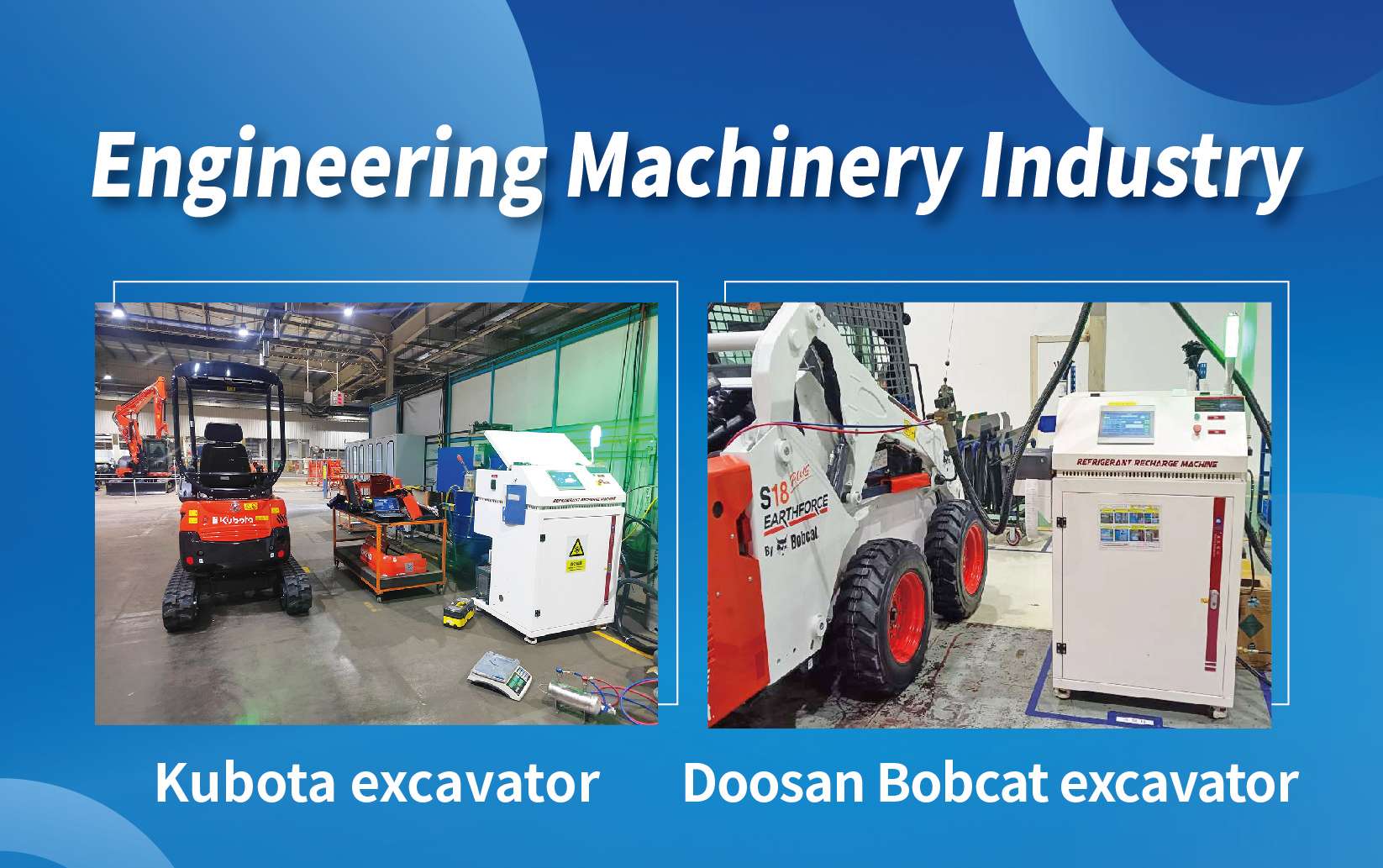

5. Doosan Bobcat Mechanical Engineering Vehicle -- CM8600 Refrigerant Charging Machine

FAQs

Q1: Minimum Order Quantity(MOQ) and product delivery time

- MOQ: 1 Unit.

- Product Delivery Time: 7-30 days(Specific time according to specific products)

Q2:The whole order process is tracked throughout

- Technical proposal communication → Order production → Performance test → Packaging→ Necessary documents confirmation →Transportation → Customs declaration → Shipping→ Installation assistance(provide user manual or install video) → After-sales support. Buyer will receive the notification mail (include photos, report or other documents) in each process.

Q3: Could you customize the equipment?

- OEM and ODM are accepted, or any other unique customization needs. ChunMu's experienced technical engineers will provide selection guidance or help design customized models.

Q4: What does the sales service include?

- Any price inquiries or technical inquiries will be responded within 24 hours.

- Experienced technical engineers will give the model selection guide or help design the customized model.

- Besides the temperature control units, other install parts or auxiliary equipment is optional according to customers' requirements.

- Detailed quotation scheme and system configuration will be provided to the customer together.

- All necessary installation documentation (e.g. Electrical diagram, User Manual) will be provided in both electronic copy and hard copy.

- Perfect after-sales service system, it's including: Technical guidance, detailed machine maintenance methods, troubleshooting, solutions, regular return visit etc.

Q5: What kind of warranty do we offer?

- All the products are passed strict test, and CM Refrigeration provide 12 months guarantee since the date of bill of lading. During this guarantee period, CM Refrigeration provide spare parts without any charge in case of quality discrepancy caused by us. If out of guarantee period, we still can charge the buyer cost price of spare parts and provide Technical Product support for customers.
